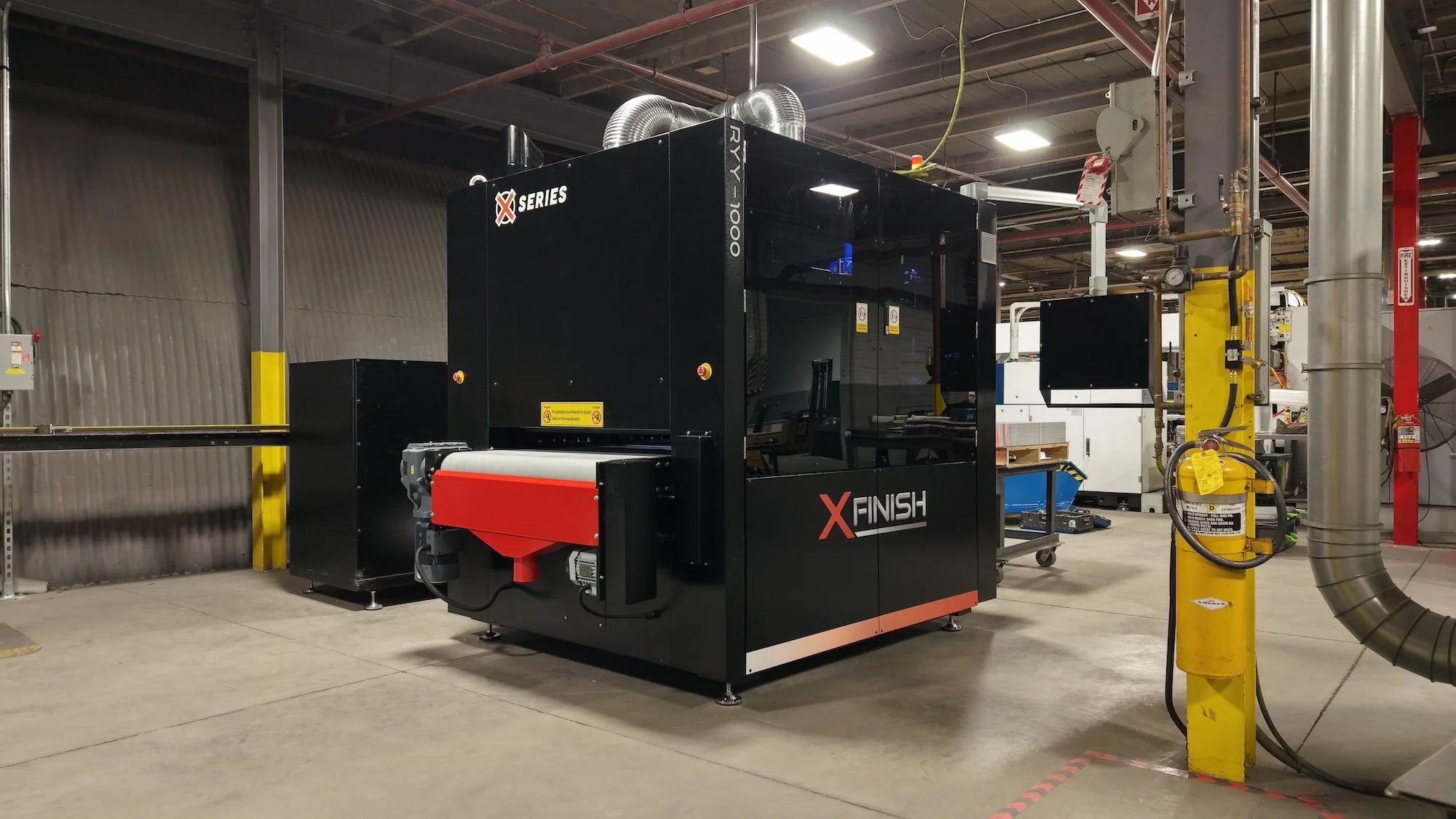

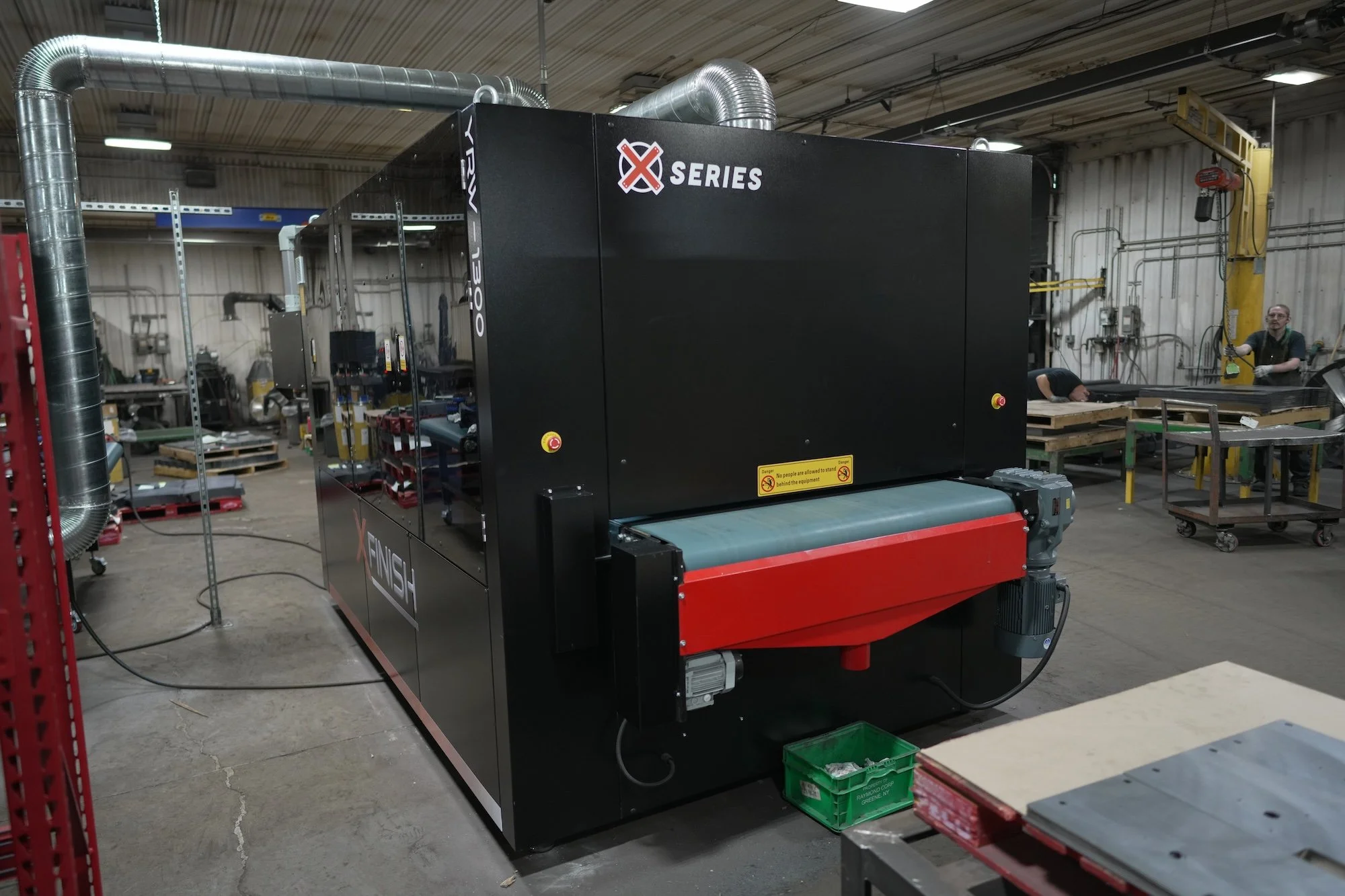

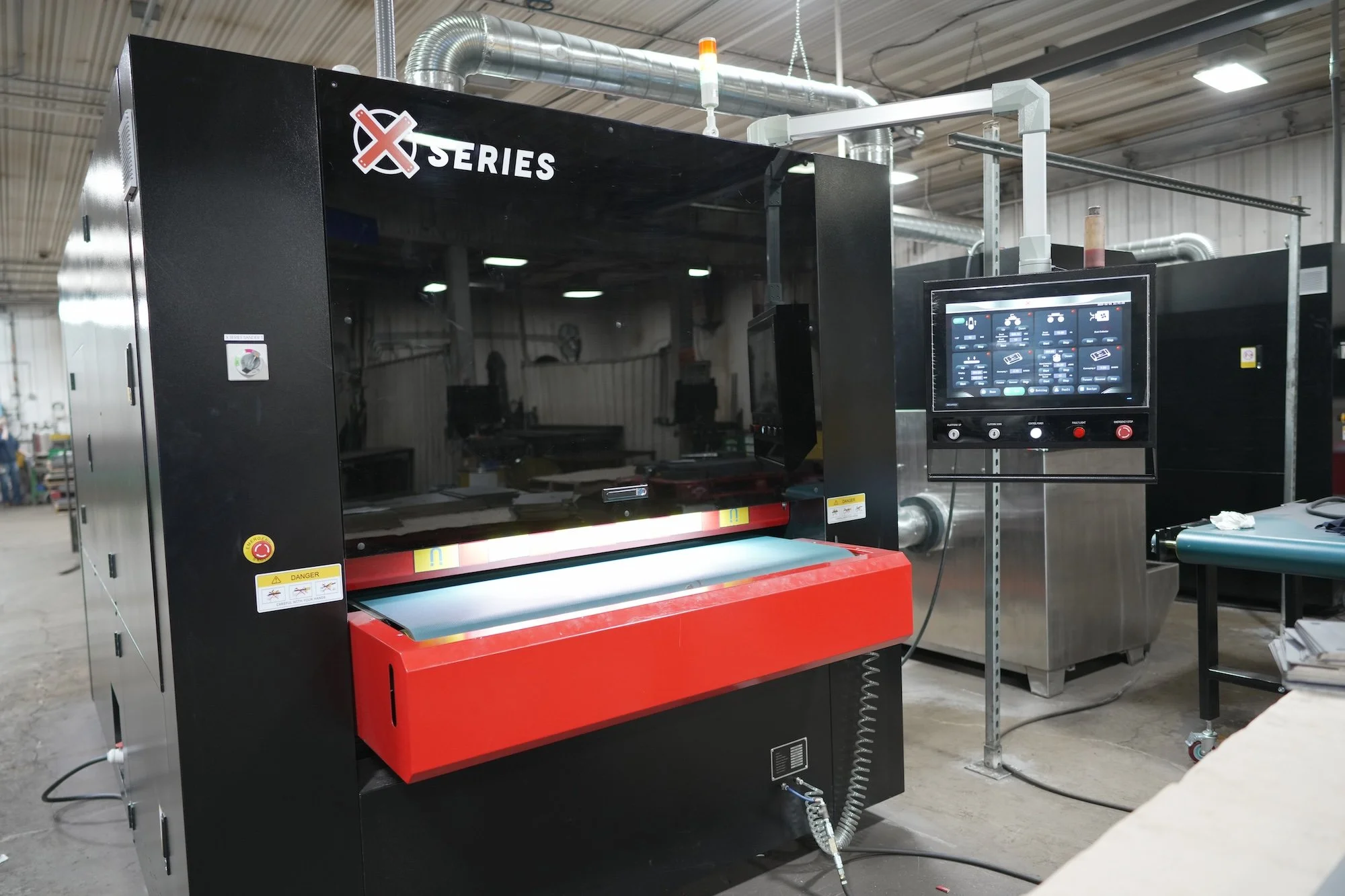

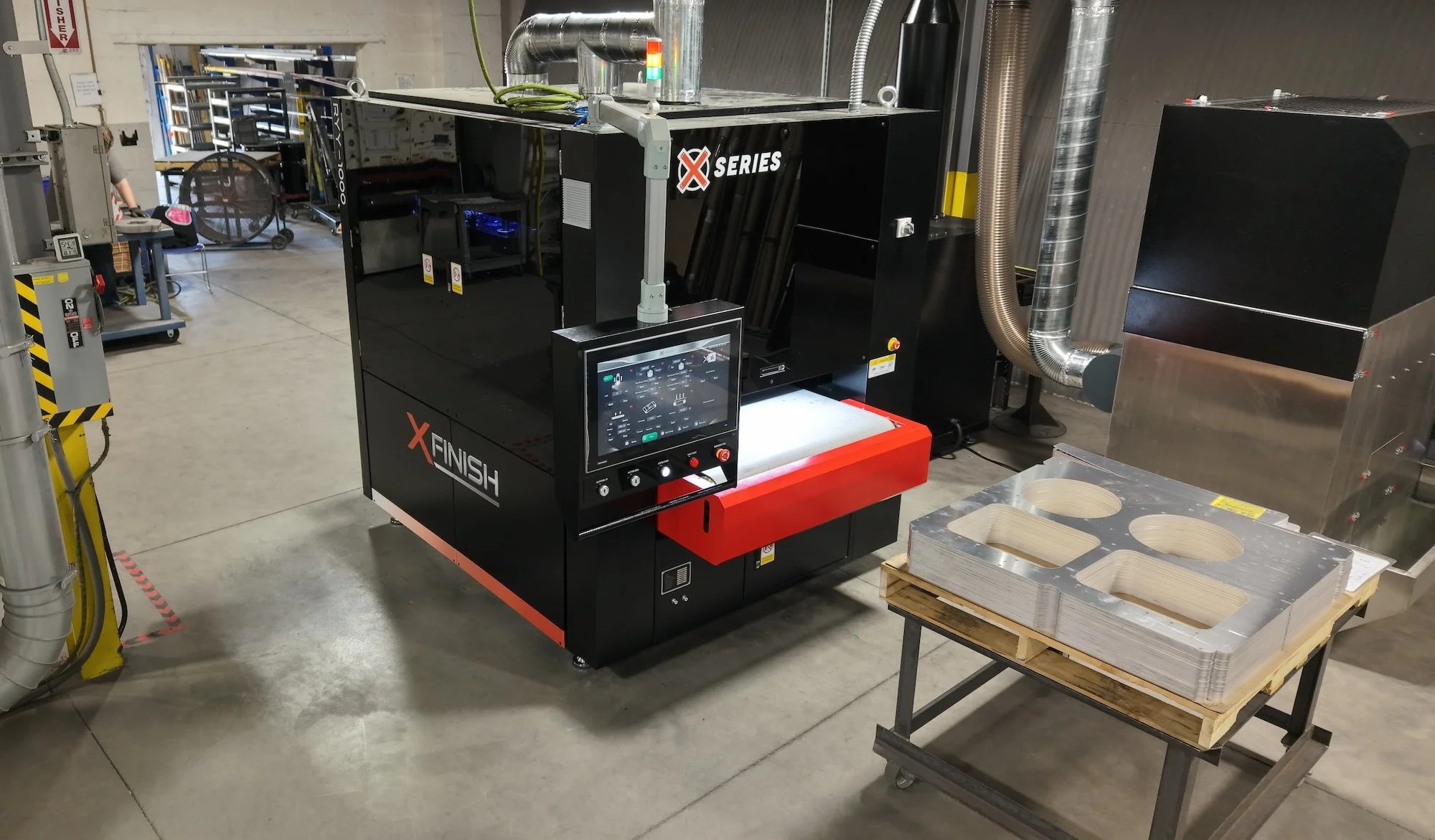

Deburring, Edge Rounding, Finishing, Graining or Polishing Machine

The X-FINISH is an automated finishing solution designed to replace labor-intensive manual grinding and deburring.

This machine processes laser, plasma, punch, and waterjet parts with configurable systems for burr removal, edge rounding, slag removal, graining, polishing, and #4 finishes.

With flexible part-handling options and multiple finishing technologies, the X-FINISH delivers a more consistent, repeatable finishing process.

FUNCTION and MARKET

  • Steel Service Center Value Add

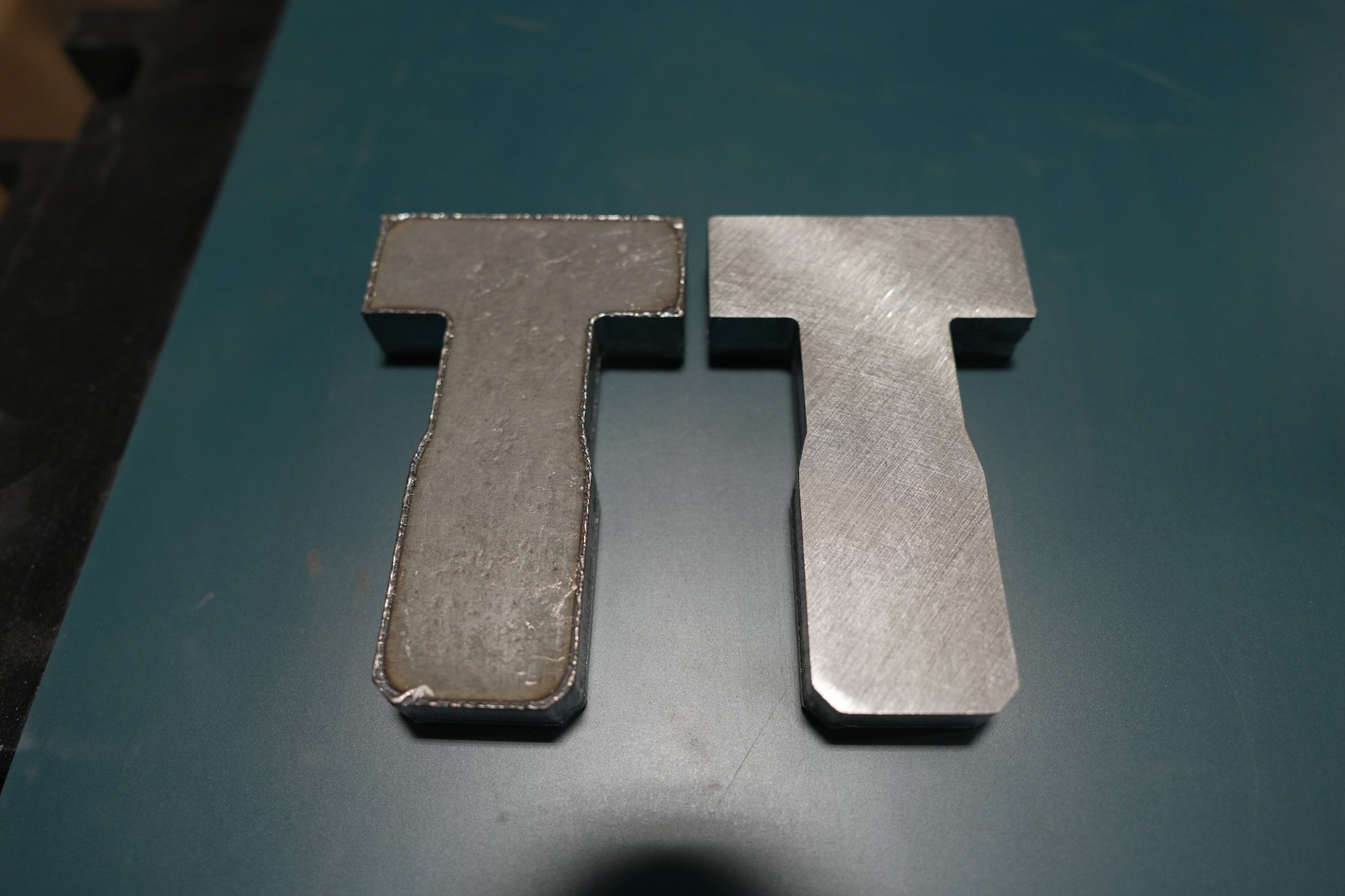

    • Laser, Plasma, Punch or Waterjet parts that have burr, dross, slag, or sharp edges, this system replaces the manual flap wheel or disc grinding… ROI based on labor savings and consistent actual results vs variables from manual labor

    • Also can do polished finishes or #4 finish etc with right consumables and settings

  • Job Shop

  • Manufacturers

  • Fabricators

  • Industrial Fabrication

  • Food Grade Applications

  • High End Architectural finishes

Features

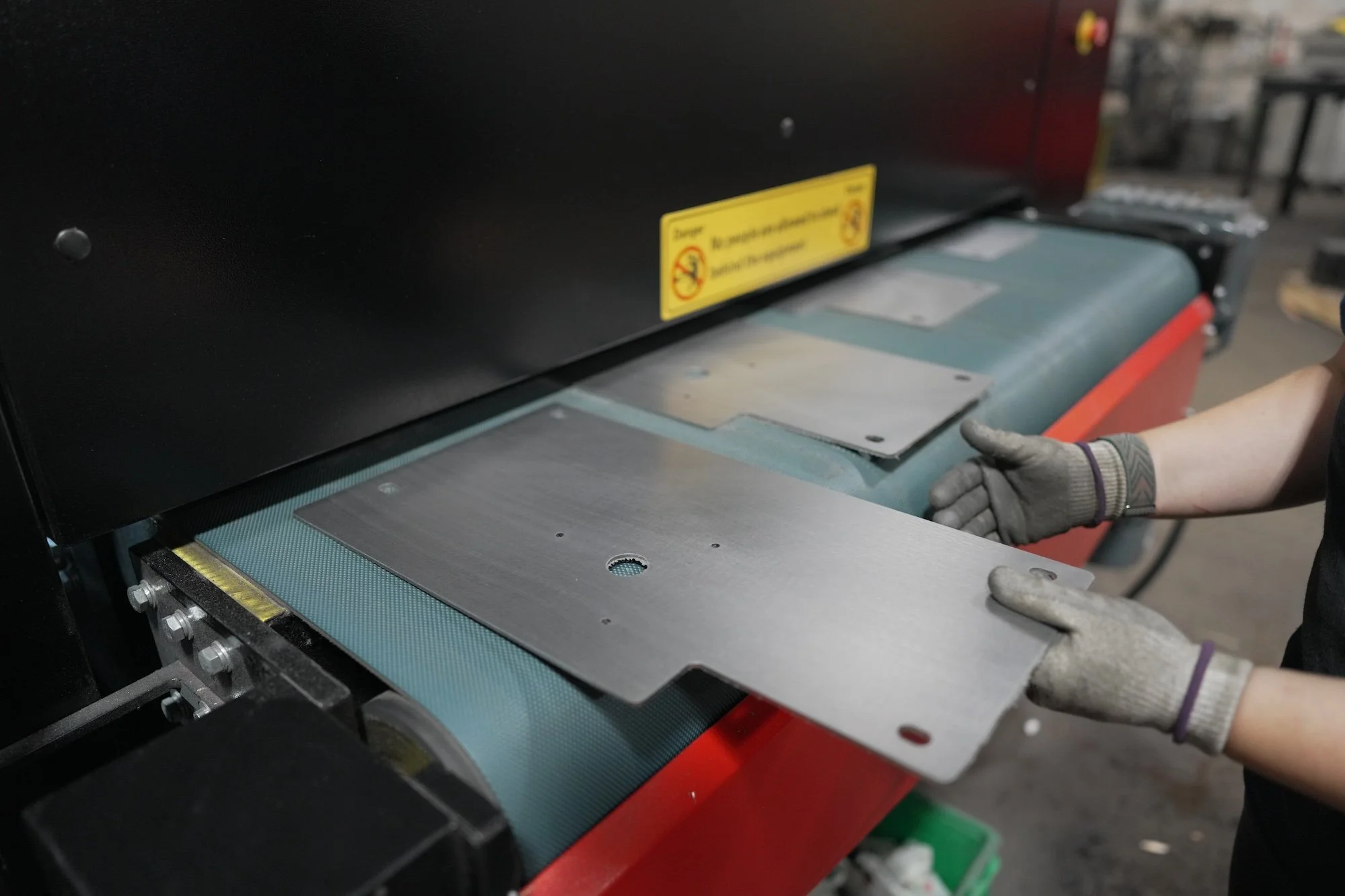

  • Conveyor Table

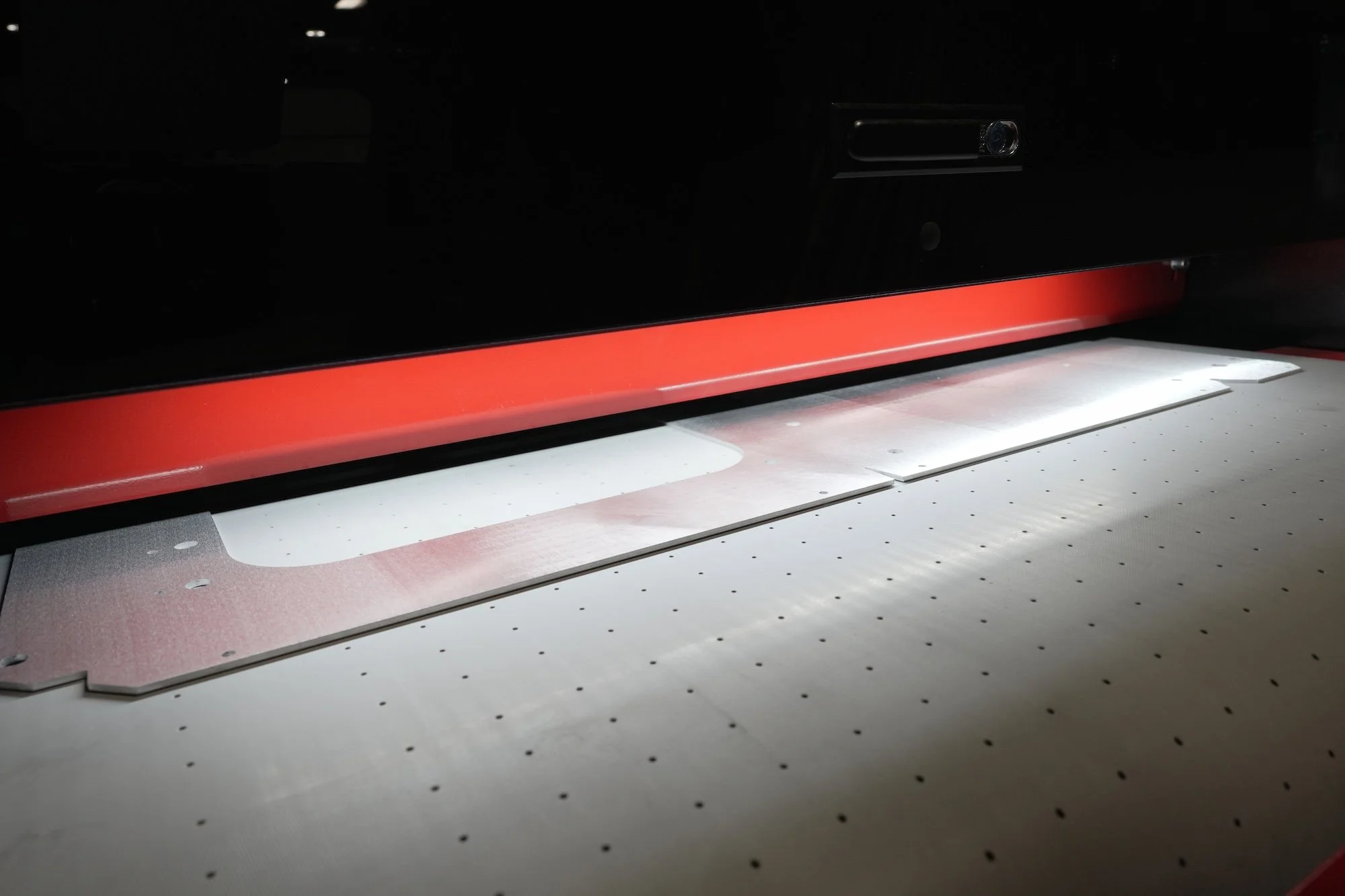

    • Perforated Sticky Table with Vacuum Suction for Smaller Part Stability

    • Mesh Table with Magnetic base for STEEL Part Stability

    • Combo table with Magnetic base on 1 side, Vacuum and Perforated on other side

    • 1000mm 1300mm 1600mm - even have 200mm small footprint model.

  • Process Stations

    • Wide Belt (R)

      • Removes heavy burr with certain paper or scotchbrite consumable belts and different grits

      • Also can be configured with Line Grain (#4 finish) type capability

      • Can be set up with multi stations

      • Special anti tracking pneumatic mechanisms and sensors

      • More aggressive

    • Rotary Flap Wheels

      • Multiple Spinning Flap Wheels with Abrasive Paper Flaps

      • For edge rounding and can fray out and dress interior of part geometry

      • Not aggressive

    • Rotary Disc Assembly

      • Rotary Discs made up of Abrasive Mix with Scotchbrite and Paper

      • For semi aggressive and precise deburring of internals and edges

      • Rotary Discs and Side to Side Acutation

      • Best for thinner materials to ensure precise area processing

      • Semi aggressive

    • Finger Hard Slag Belt

      • Cross Hammers that have Chipping Blocks

      • For Heavy Slag removal

    • Cross Belts

      • Abrasive paper and scotchbrite combo on blocks with spinning crossbelt mechanism

      • For Edge Rounding application

      • Space Saving

      • Semi aggressive

  • Vacuum Sorb Pump

    • Heavy Vacuum for suction for table

  • Wet Basin Dust Collector

    • Dust Extraction with a Wet Basin Spark and Dust Filter Trap

  • Special Belt Cleaning Brush Device

    • Cleans Conveyor Table

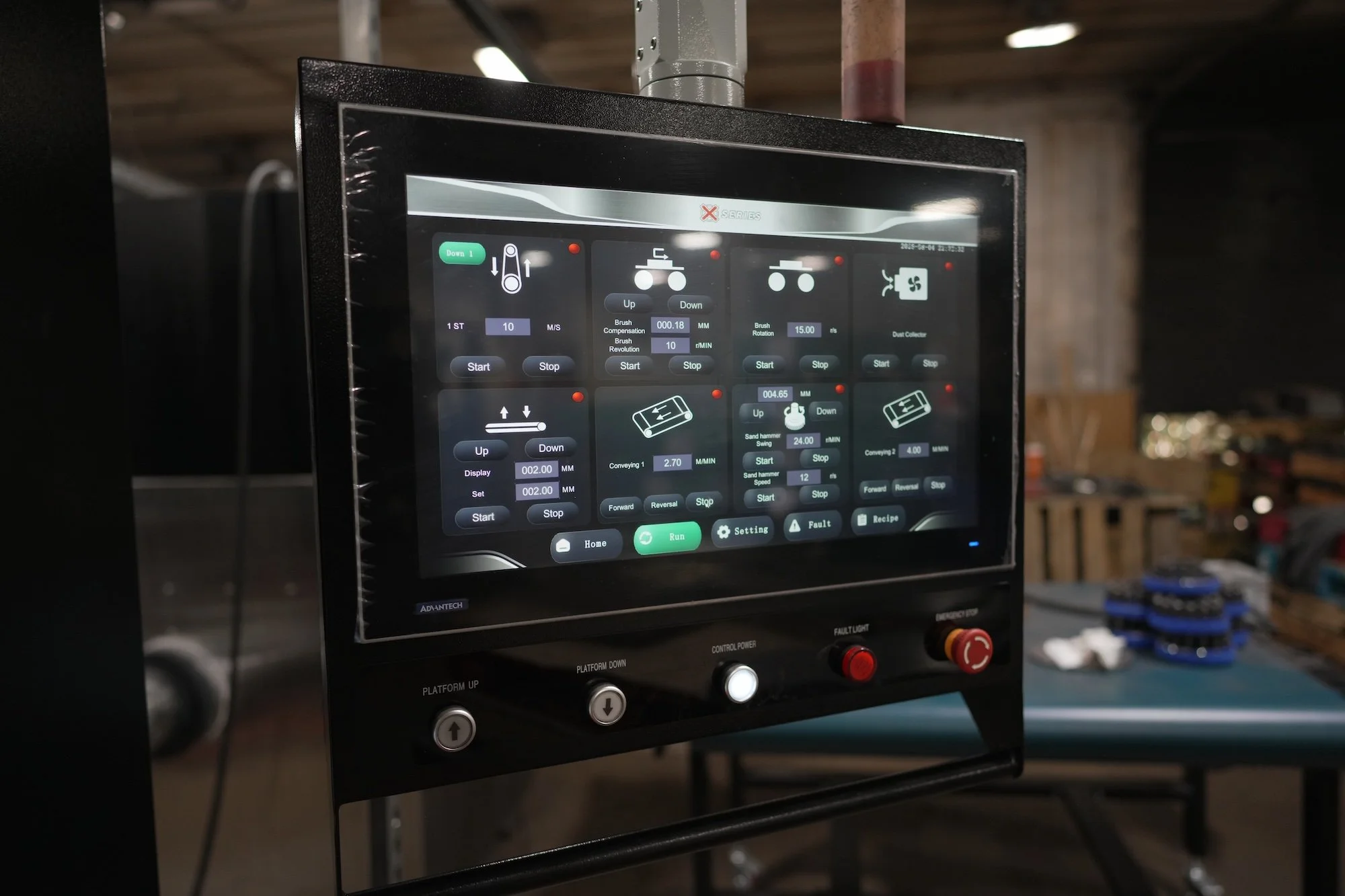

  • Programmable Controller

    • Easy Operation Touch Screen Visual HMI and Controller

    • Simple to use

  • Safety Interlocks
